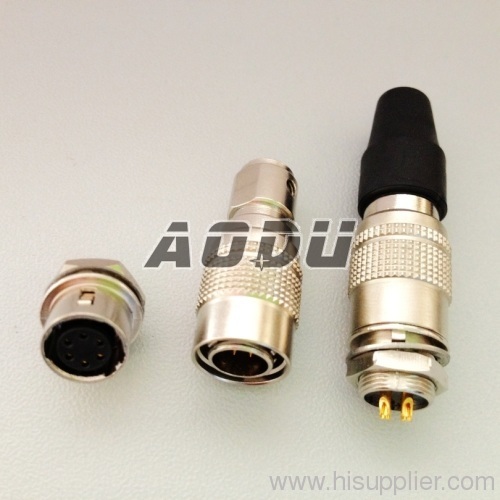

Product Specifications /Features

Industry camera connectors are designed to be compatible
with Hirose connectors which with self-latching system for
easy operations. They are mainly used in variety of
challenging applications and environments.

Product details:
1. Shell out diameter 11.5mm;
2. Multi-pole types 4 to 7 contacts;
3. Easy push-pull operation;
4. Five-key system permits only one way of coupling;
5. High density, easy wiring and mounting;
6. Brass out shells which have a nickel-plated
surface;
7. Male contacts and female contacts are made of bronze
beryllium and have a gold-plated surface;
8. Insulator used mechanical characteristics of
thermoplastics, such as PBT;
9. Compatible with Hirose? HR10A-7P,
HR10A-7P-4P (73) HR10A-7P-6P (73) HR10A-7P-7P (73)
HR10A-7P-4S (73) HR10A-7P-6S (73) HR10A-7P-7S (73)

Competitive Advantages

Well and High Quality Control ,
Prompt Delivery ,
Competitive Prices ,
In a Variety of Design ,
Small Order Acceptable

Buyer Keywords
Industrial Camera Connector, Hirose Connector, metal connector, Connector

Related Keyword Searches on ttnet.net:
Connector , Cable , Speaker , Socket , Adapter , Tube , Transformer , Wire , Machinery , Clamp

Related Category Searches on ttnet.net:
Electrical Components & Equipments, Connectors/n.e.s., Connectors/n.e.s.

2J

Product Specifications /Features

Industrial camera connectors are designed to be compatible
with Hirose? connectors which with self-latching system for
easy operations. They are mainly used in variety of
challenging applications and environments.

Features:
1. Shell out diameter 14.7mm;
2. Multi-pole types 7 to 12 contacts;
3. Easy push-pull operation;
4. Five-key system permits only one way of coupling;
5. High density, easy wiring and mounting;
6. Brass out shells which have a nickel-plated surface;
7. Male contacts and female contacts are made of bronze beryllium and have a gold-plated surface;
8. Insulator used mechanical characteristics of thermoplastics, such as PBT;
9. Compatible with Hirose? HR10A-10P:
HR10A-10P-7P (73) HR10A-10P-10P (73) HR10A-10P-12P (73)
HR10A-10P-7S (73) HR10A-10P-10S (73) HR10A-10P-12S (73)
HR10A-10R-7P (71) HR10A-10R-10P (71) HR10A-10R-12P (71)
HR10A-10R-7S (71) HR10A-10R-10S (71) HR10A-10R-12S (71)

Competitive Advantages

Well and High Quality Control ,
Prompt Delivery ,
Competitive Prices ,
In a Variety of Design ,
Small Order Acceptable

Buyer Keywords
Industrial Camera Connector, Hirose Connector, metal connector, connector

Related Keyword Searches on ttnet.net:
Connector , Cable , Speaker , Socket , Adapter , Tube , Transformer , Wire , Machinery , Clamp

Related Category Searches on ttnet.net:
Electrical Components & Equipments, Connectors/n.e.s., Connectors/n.e.s.

HIROSE (HRS) MULTIPIN CONNECTORS

Hirose Electric manufacture several ranges of multipin connectors, which are widely used on Japanese manufactured video equipment. Manufacturer's technical data on specific types is available on request.

HR10 Series

Miniature 4, 6 and 12 pin connectors, 5 keyway orientation guides and sliding ring locking (pull to de-latch, automatic latch engagement on insertion). Pin contacts recessed to prevent damage when trying to find correct keyway alignment. Matt nickel finish zinc/brass alloy shells, gold plated pins. Cable diameter range 4.8-5.2mm (4 and 6 pin types), 6.8-7.2mm (12 pin types), smaller cables should be brought up to this diameter by using Hellerman sleeving. The plug insert is screwed into the shell, but as the main (sliding) part will rotate, the best method is to mate the insert with a chassis-mount type, and use this to hold the insert while the shell is screwed on. An open ended spanner is useful to tighten body onto insert, and cable clamp onto body, size 8mm across flats for 4 and 6 pin types, 11mm across flats for 12 pin type.

HR10A Series

A lower cost version of the HR10 series, these are fully compatible. Details are as for HR10, except that bodies have a knurled outer surface, and cable glands are plastic (metal on HR10 series).
