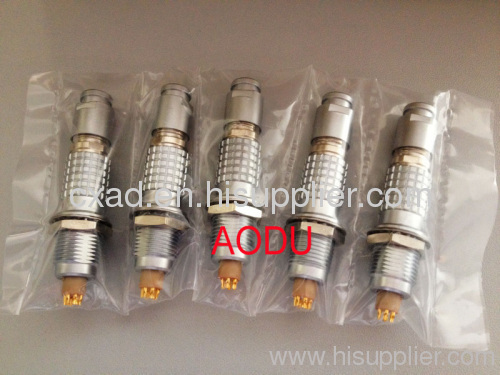

EGG.1B.314.CLL+FGG.1B.314.CLAD52Z Lemo/Odu compatible 1B Series multi-core connector

Price: 8.0~27.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Means of Transport: Air
Packing: generally packing method
Brand Name: AD
Production Capacity: 10000/week
Delivery Date: 7days after got the payment
series: 00 0B 1B 2B 3B

EGG+FGG 1B.2P 3P 4P 5P 6P 7P 8P 10P 14P ODU Connector, Push Pull Connector, circular connector, metal connector, self-latching connector

Lemo compatible 1B Series multi-core connector
Gende: Male & famale
Housing: Brass body with chorme or nicker finished
Insulator : PEEK /PPS
Contact style: weld / crimp.PCB-Core type.
Main Feature:
Lemo compatible connector B seris metal circular connector with the following main features:
1-The quick push-pull self-locking system.
2-Welding,crimping,and printing board connector
3-Straight ,elbow.
4-Multiple keys options to avoid cross mating of similar connectors.
5- 360 degree screening for full EMC shielding.
6-Series of multi-core,high-density installation space-saving.
7-Key system,G pins standard for connector alignment.
Application:
Medical Apparatus/communication/cctv products/test &measurement equipment/camera/Audio/video/data acquisition system/ Automation

Technical characteristic
1- Mating/unmating Endurance:>5000 cycles
2- Humidity:Up to 95% at 60 Degree centigrade
3- Operating Temperature Range:-45 to 125
4- Machinical concussion :100g.6ms
5- Oscillate Frequency:10-2000HZ,15g
6- Mospheres--Salt spray tests:>48h
7- IP Rating :IP50
